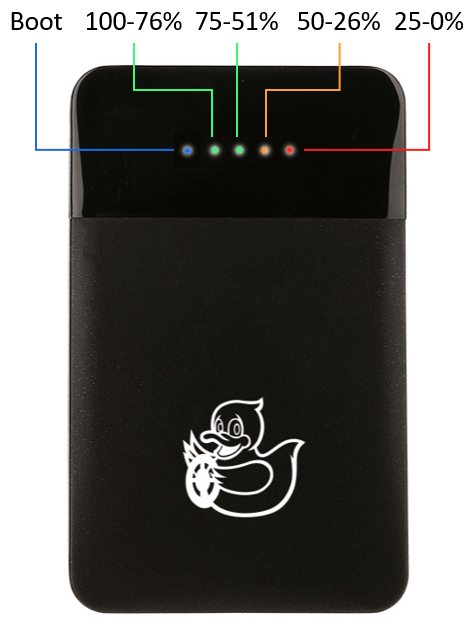

  • Duckiebattery energy level indicators
  • Duckiebattery diagram
1 5

the Duckietown project store

Duckiebattery

Duckiebattery

$69 USD
$69 USD
Save Sold out
Shipping calculated at checkout.

The Duckiebattery is a custom-designed smart power bank for robotics applications.

It is special because it can communicate to the connected computer (e.g., Raspberry Pi, Jetson Nano, etc.) via USB, enabling a number of autonomous behaviors.

Moreover, it is designed to provide continuous output in all operating conditions: in charge (for development), not in charge (for autonomous operations), when plugged in, when plugged out. Most power banks on the market will drop output voltage for a few milliseconds when plugged in/out, causing the robot to reset.


Features:

  • Dimensions:  62 x 100 x 24.5 mm

  • Weight: 189g (fully charged)
  • Capacity: 10 Ah at 3.7V (37Wh)

  • Charging: Micro USB 5V at up to 2A

  • Outputs: 2x USB type A 5V at up to 4A combined
  • Protections: external voltage applied to outputs, input charge voltage, internal temperature, over-discharge, overcharge

  • Pass-through: one USB output will work while being charged

  • No reset on charger plug-in or plug-out: perfect for autonomous charging behaviors and transitions between development and testing

  • Live diagnostics via USB A

    • Cell temperature
    • Cell voltage
    • Input current
    • State of charge
    • Cycle count
    • Autonomy
    • Output voltages
    • Input voltage

  • Certifications: CE, FCC, RoHS
  • Additional information: Duckietown library
